NXL 5-Channel Full-Range Class D IPX5 Marine Amplifier 4 x 150 @ 4-Ohm and 1 x 600 watts RMS @ 2 Ohm

NXL 5-Channel Full-Range Class D IPX5 Marine Amplifier 4 x 150 @ 4-Ohm and 1 x 600 watts RMS @ 2 Ohm

Regular price $599.95 USD
Regular price Sale price $599.95 USD
Sale Sold out

GENERAL SPECIFICATIONS

SKU
NXL-M5
Total Watts (Peak)
3600W
RMS Power @ 4 ohm
4 x 150W / SUB: 300W
RMS Power @ 2 ohm
4 x 230W / SUB: 600W
RMS Power @ 4 ohm Bridge
2 x 440W


AUDIO

Frequency Response
20Hz - 20KHz
Signal to Noise Ratio 1W @ 4Ω
>90dB
Efficiency @ 4 ohm
>97%
Channel Separation
>55dB
Total Harmonic Distortion (THD)
<0.15%
Low Level Input Range
0.2V-6V
High Level Input
Yes: >5V
Selectable X-Over
HPF/LPF/FULL
X-Over Filter Range
40Hz - 2KHz / SW: 32Hz - 320Hz
Bass Boost Range
0-12dB (SW)
Bass Boost Frequency
45Hz +- 5Hz
Phase Selector
Yes 0~180 (SW)


FEATURES 1

Amplifier Class
Digital (D)
Amplifier Type
Stereo Full Range
Number of Channels
5 Channels
Minimum Impedance
2ohm St / 4ohm Bridge / 2ohm SW
Led Indicator
Clipping / Protect / Power

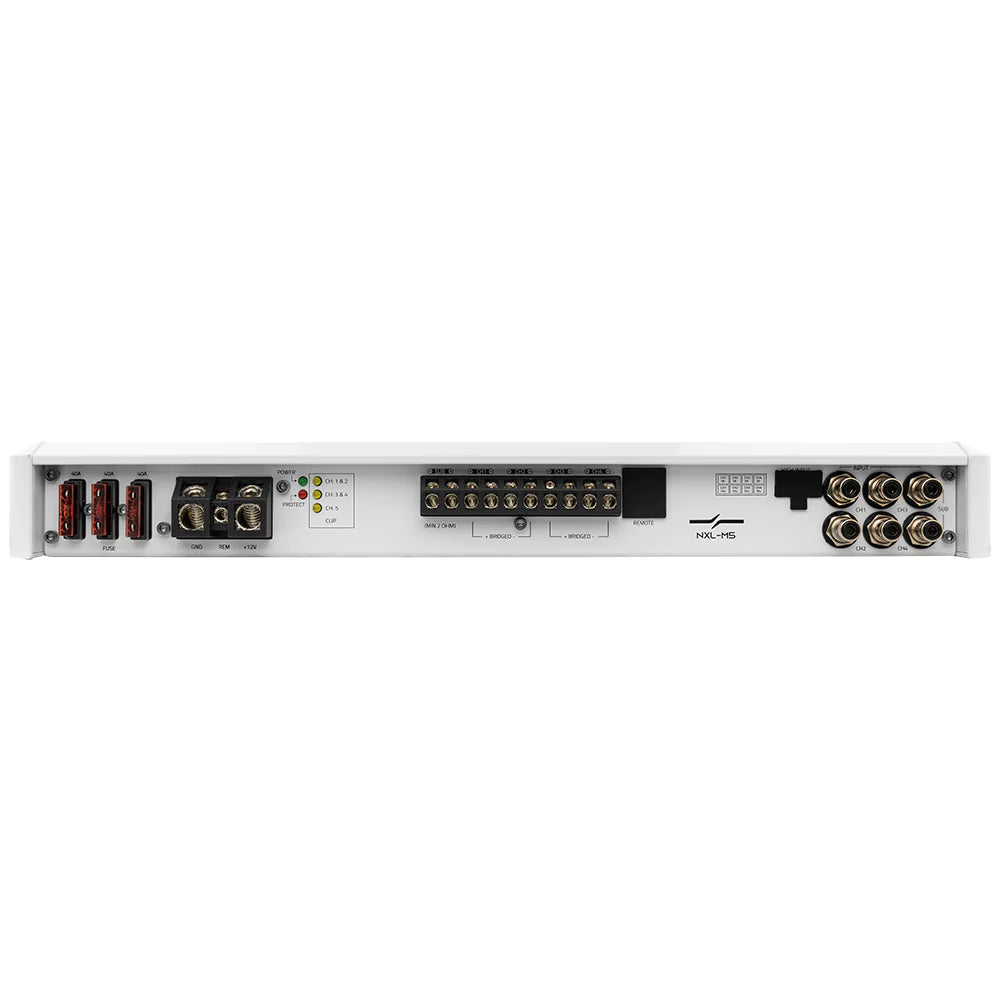

Power Input Terminal Size
4 Ga
Fuse Size
120A (3x40A)


FEATURES 2

Thermal Protection
Yes
Over-Load Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes
Body Color | Finish
Gray+White / Aluminum+ABS
DC Output Protection
Yes
Clipping Protection
Yes


EXTRA FEATURES

Water Resistant Rated
Yes, IPX5 (Water Splashing)
PCB Layout Design
4 Layers / Coated
RCA Output
No
UV Compliant
Yes, UV Protected and PCB Coated
Input Sum Selector
Yes, 2/4/5 Ch Input Mode
Tiffany Style RCA
Yes
High Level Input
Yes, 4ch Speaker level
Stainless Steel Hardware
Yes, (Screws)
Potenciometers
High Quality Metal Knob
Remote Level Control
No


MEASUREMENT

Overall Length
14.3" / 365mm
Overall Wide
4.5" / 116mm
Overall Height
1.7" / 43mm
Heatsink Length
13.3" / 340mm
Gross Single Unit Weight
2.24kg





PRODUCT OVERVIEW

DS18 NXL-M5


Full Range 5 Channel IPX5 Grade Marine/Boat Amplifier 3600W

Introducing DS18’s NXL-M5, a full-range marine amplifier that combines cutting edge technology, unmatched durability, and mind-blowing sound quality.
Utilizing an impressive MAX power of 3600W, the NXL-M5 delivers unrivaled performance that will make your system soar. With its RMS power output of 4 x 150W and a whopping 600W for SUB’s, the NXL-M5 guarantees consistent audio performance that is guaranteed to satisfy even the most discerning audiophile. The DS18 NXL-M5 covers the full range of frequencies ensuring that every beat, note, and whisper is reproduced with unrivaled precision.
Crafted with a focus on longevity, the NXL-M5 is built to withstand the harshest marine environments. Made from hardware resistant to corrosion and UV rays, the NXL-M5 is guaranteed to stand the test of time, even under the most challenging circumstances. The coated 4-layer PCB provides an additional layer of protection against corrosion, guaranteeing the NXL-M5's reliability for years to come.

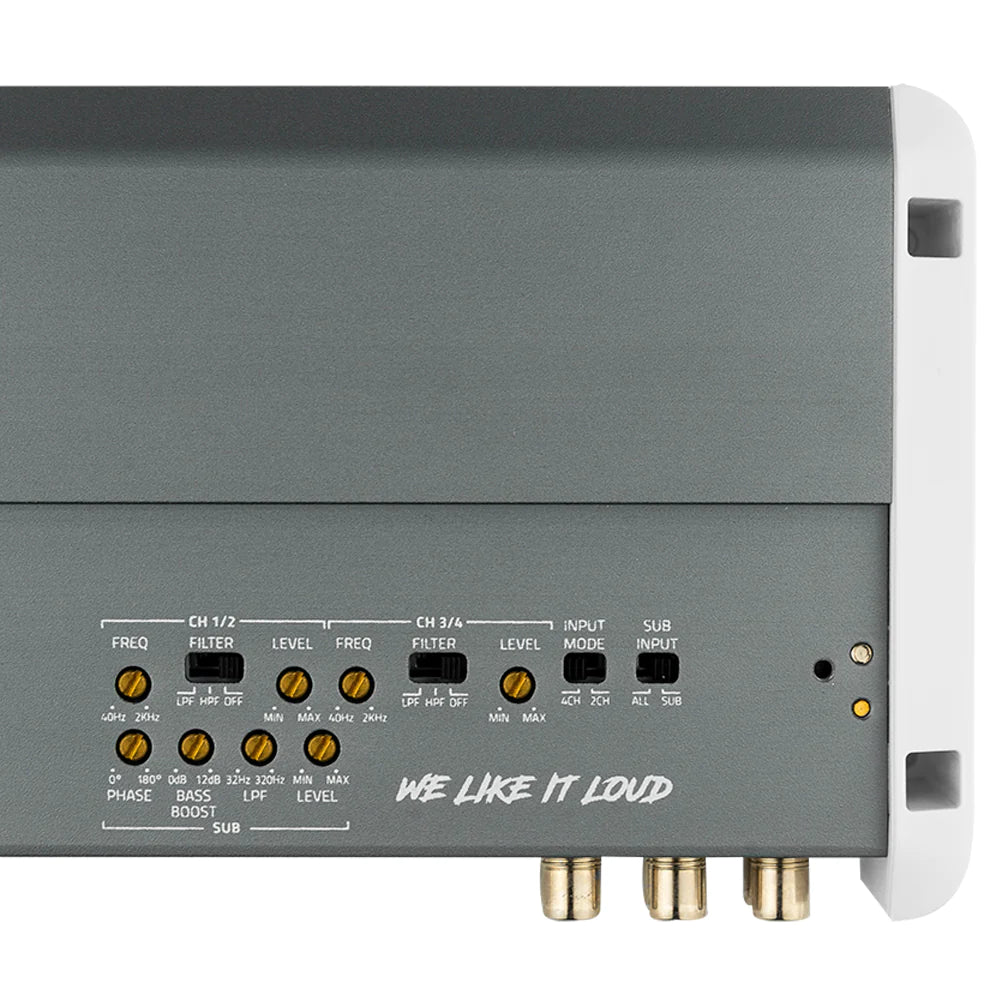

Your peace of mind is our top priority. The NXL-M5 features a stable and reliable Class D circuit design, accompanied by built-in protections against short circuits, thermal issues, and voltage fluctuations. This ensures that your amplifier remains safe and continues displaying extraordinary performance, no matter the circumstances. Its front cover shields the controls from the elements, ensuring that you can fine-tune your audio settings without worry. While the LED clip indicator provides visual feedback, enabling you to make precise adjustments effortlessly.
Take full command of your audio experience with the waterproof remote level bass knob specially designed for easy installation on your boat's panel or wet areas. Seamlessly adjust the bass output without compromising your enjoyment or exposing the amplifier to potential damage. DS18 understands the importance of convenience and versatility in your marine adventures.
At DS18, we pride ourselves on our commitment to excellence. The NXL-M5 undergoes rigorous Audio Precision Quality Control Verification and sound quality verification using AP instruments. This meticulous testing guarantees that every unit meets our uncompromising standards and provides you with an unparalleled listening experience.
