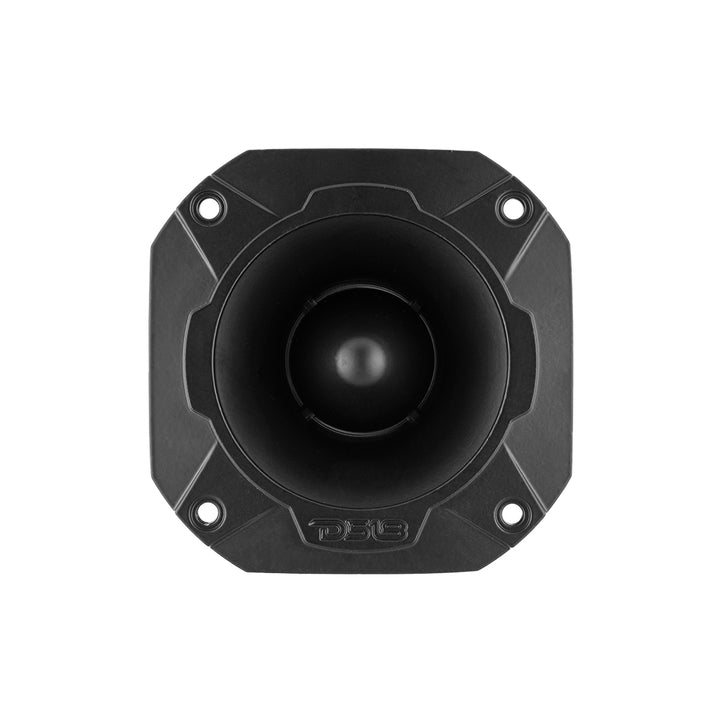

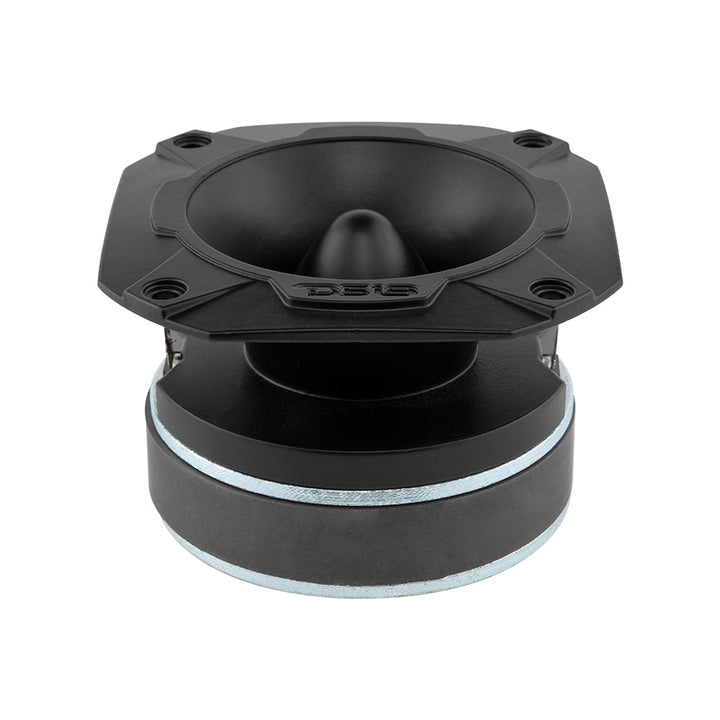

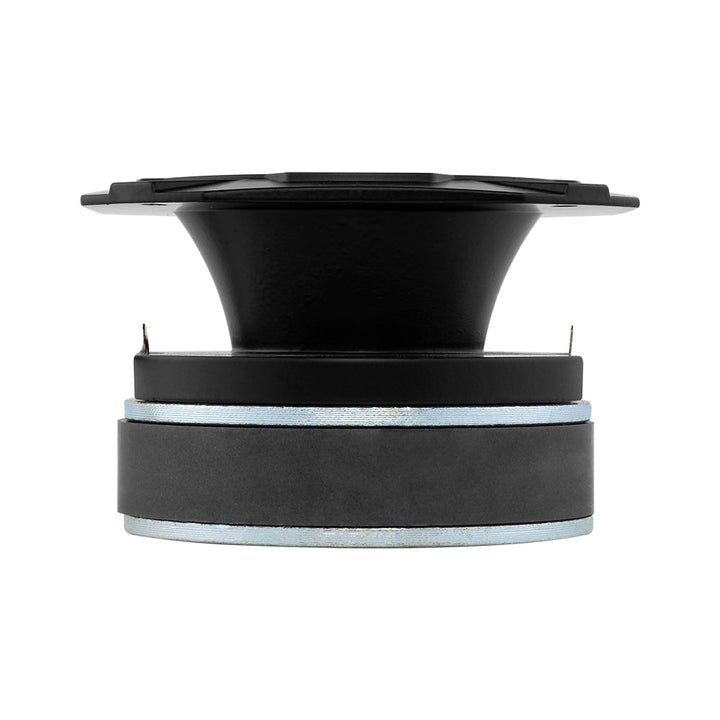

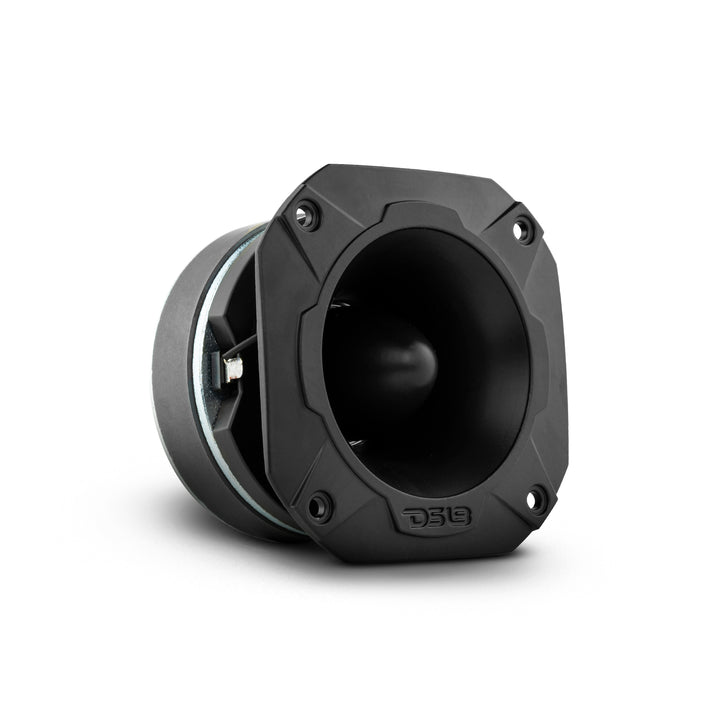

DS18 PRO-TWX3 4" Super Bullet Tweeter 500 Watts 1.5" Aluminum 4-Ohm Voice Coil - Sold as Single

DS18 PRO-TWX3 4" Super Bullet Tweeter 500 Watts 1.5" Aluminum 4-Ohm Voice Coil - Sold as Single

Regular price $41.95 USD
Regular price Sale price $41.95 USD
Sale Sold out
SPECIFICATIONS
Nominal Diameter 4” / 102 mm
Nominal Impedance  4 Ohms
AES Power Handling 125W
Program Power Handling 250W
Peak Power Handling 500W
Sensitivity (1w/1m)  106 dB
Frequency Response 3K-20KHz
Recommended Hi Pass Crossover

3KHz

Replacement Diaphragm:

 PRO-TW3VC

BODY / FEATURES

Pair or Single

Single
Body Material Aluminum
Body Color / Finish Black
Bullet Material Aluminum
MOTOR
Voice Coil Diameter 1.5” / 38 mm
Voice Coil Former Material  Kapton
Winding Material  CCAW
Diaphragm Material Titanium
Magnet Material Ferrite
Magnet Weight  14 Oz
MEASUREMENT
Overall Diameter 4”/ 102 mm
Overall Depth 2.58”/ 65.5 mm
Front Mount Baffle Cutout 3.62” / 92 mm
Mounting Depth 2.36” / 60 mm
Motor Diameter 3.5" / 90mm


DS18 PRO-TWX3 4" Super Bullet Tweeter 480 Watts 1.5" Aluminum 4-Ohm Voice Coil - Sold as Single

The Pro TW series brings pro audio to a bright new level of elegance, clarity, and loudness.

These speakers were designed specifically for the audio enthusiast that wants unparalleled volumes with amazing sound quality all while absorbing the power thrown at efficiently allowing it to play up to extreme volumes with authority for extended periods of time. The PRO-TWX3 has a beautiful black face with strong black on black frame.

This 4-ohm Super tweeter handles an enormous 125 watts AES handling and 250 Program watts, ensuring screaming loud mid and high range frequencies be acute and clear.

Highlights

  • 4" Nominal diameter Bullet black on black Pro-Audio Super tweeter.
  • AES Power Handling 125W
  • Program Power Handling 250W
  • Peak Power Handling 500W
  • Frequency Response: 3Khz- 20Khz
  • Voice Coil Diameter: 1.5"
  • Voice Coil Material: Aluminum
  • Impedance: 4-Ohm
  • Sensitivity: 98Db

  • Magnet Weight: 14Oz
  • Magnet Material: Ferrite
  • Mounting Depth: 2.36"
  • Recommended High Pass: 3Khz


Great For:

      • Car Audio
      • Pro Audio
      • Motorcycles
      • Home Studio
      • Hi-Fi Installation
      • Surround Sound
      • Bookshelf Speakers
      • Stunt Walls
      • DIY Projects
