PRO 10" Water Resistant Woofer 350 Watts Rms 4-Ohm SVC

PRO 10" Water Resistant Woofer 350 Watts Rms 4-Ohm SVC

Precio habitual $99.95 USD
Precio habitual Precio de oferta $99.95 USD
Oferta Agotado

PRODUCT OVERVIEW

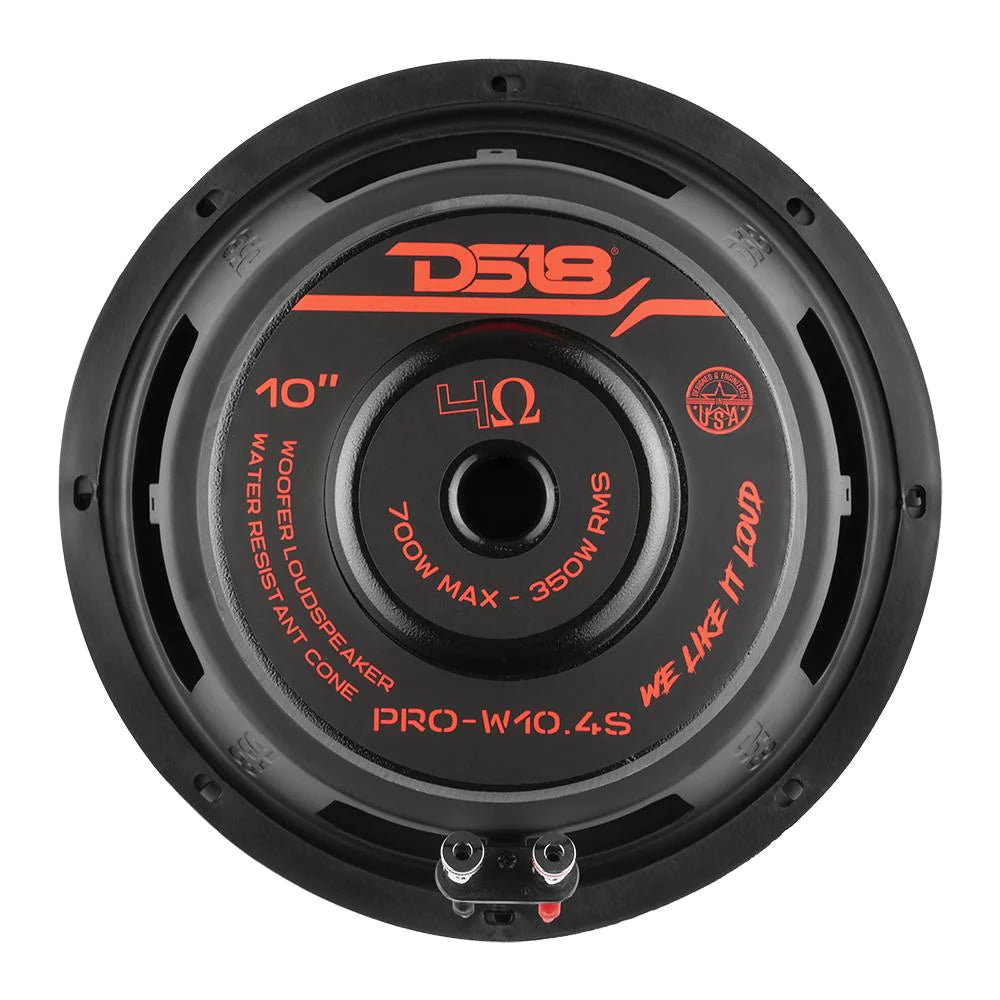

DS18 PRO-W10.4S


10" Water Resistant Motorcycle & Powersports Woofer 700 Watts 4-Ohm Svc

Experience the power of superior sound on your motorcycle with DS18’s PRO-W10.4S
DS18’s PRO-W10.4S is a full-size water-resistant woofer that withstands the harshest elements without compromising on build quality. Unlike traditional speakers, this hybrid marvel features a unique design that incorporates a water-resistant cone, ensuring zero corrosion or deformation caused by water exposure.
We've gone the extra mile to guarantee longevity and unrivaled performance. The magnet and basket have been expertly coated to resist corrosion, ensuring that your woofer remains in pristine condition even in challenging environments. Crafted from lightweight, water-resistant paper, the cone is supported by a robust rubber surround, preventing water from penetrating the inner workings of the woofer.
The DS18 PRO-W10.4S boasts an impressive power handling capacity of 350 watts RMS and a peak power of 700 watts, ensuring that every beat is delivered with precision and impact. Equipped with a 2.5" voice coil, this woofer is designed to withstand the demands of high-performance audio systems. The voice coil's former material and winding material ensure reliable operation and optimal performance. The water-resistant paper cone is not only durable but also guarantees exceptional sound reproduction. With a sensitivity of 88dB and a frequency response ranging from 40Hz to 4.5KHz, every note and every beat is delivered with clarity and depth.
Amplify your experience with our single voice coil 2-ohm and 4-ohm versions, allowing you to optimize your ohm load according to your amplifier's specifications.
Experience the ultimate combination of power, durability, and unrivaled performance with DS18’s PRO-W10.4S. Its superior design and exceptional features make it a must-have for motorcycle riders and powersports enthusiasts seeking an audio solution that can withstand the rigors of the road.





SPECS

SKU
PRO-W10.4S
Nominal Diameter
10’’ / 254mm
Nominal Impedance
4 Ohm
RMS Power Handling
350W
MAX Power Handling
700W
Sensitivity (1w/1m)
89 dB
Frequency Response
40Hz-5KHz
Recommended Lo Pass Crossover
180hz


MOTOR

Voice Coil Diameter
2.5’’ / 65.5mm
Voice Coil Former Material
Til
Winding Material
SV
Cone Material
Water resistant paper
Dust Cap Material
Water resistant paper
Surround Material
Rubber
Basket Material
Steel
Basket Color/Finish
Matte Black
Magnet Material
Ferrite
Magnet Weight
46 oz
Displacement Volume
2.12L / 0.075ft3


THIELE & SMALL PARAMETERS

Equivalent Volume VAS
19.65L / 0.69ft3
Excursion (one way) XMAX
12.2 mm
Free Air Resonance FS
40 Hz
Mechanical Factor QMS
4.275
Electrical Factor QES
0.518
Total Factor QTS
0.462
Moving Mass MMS
67.531g
Compliance CMS
0.23mm/N
Bl Factor Bl
9.8
Voice Coil Inductance LE
1.165mH
Diaphragm Area SD
352.99 cm2
Dc Resistance RE
3.2 ohms
Efficiency Bandwidth Product EBP
77.2


RECOMMENDED ENCLOSURES

Sealed Internal Volume
1.4ft3
Sealed Box Output Response F3
53Hz
Ported Internal Volume
1.5ft3
Port Size *Square (WxHxLong)
3" x 3" x 5.6" / 76 x 76 x 142 mm
Port Tunning Frequency FB
45Hz
Ported Box Output Response F3
38Hz


MEASUREMENTS

Dimensions L x W x H (Inches)
11 x 11 x 6
Overall Depth
5" / 128 mm
Front Mount Baffle Cutout
9.1" / 231 mm
Mounting Depth
4.5" / 114 mm
Motor Diameter
6.14" / 156 mm
Weight (lb)
11.5
M/C Dimensions L x W x H (Inches)
22.5 x 12 x 12.25
M/C Weight (lb)
48
M/C Qty
4
Sold in
Single
